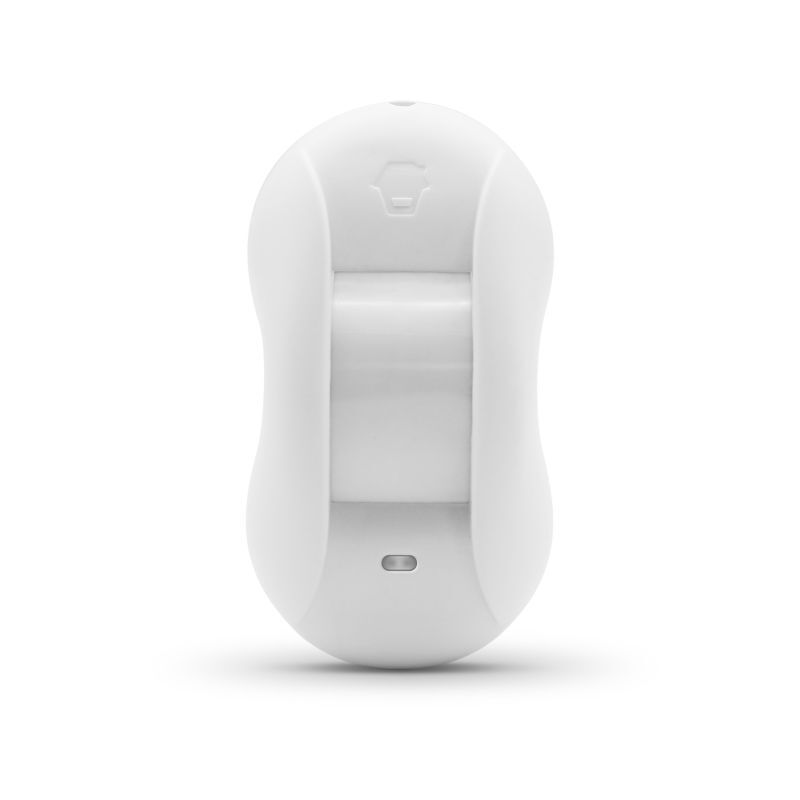

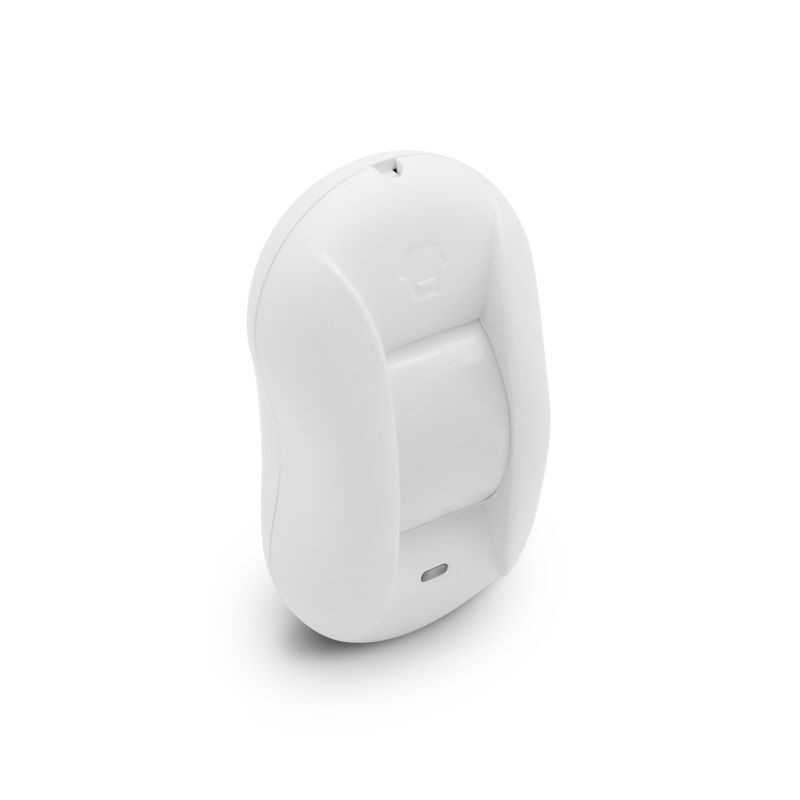

Chuango Curtain PIR Motion Detector (PIR-800)




or 4 payments of $12.15 with Info

Based on proprietary infrared spectrum detection technology, when human moves within the scope, the sensor receives the signal and inputs it into microprocessor after magnification. It works well in settings like balconies, window/door sides and corridors.


Power Supply DC 3V (AAA LR03 1.5V Battery x 2pcs)
Static Current ≤50uA
Alarm Current ≤9.5mA
Detection Distance 5m
Curtain Detection Angle 15°
Transmitting Distance ≤80m (in open area)
Radio Frequency 315MHz or 433.92MHz
Housing Material ABS Plastic
Operation Condition Temperature: -10°C ~+55°C
  Relative Humidity: ≤80% (non-condensing)
Detector Dimensions 48 x 33 x 88mm (L x W x H)
Mounting Plate Dimensions 52 x 30 x 11.6mm (L x W x H)
Model # PIR-800
Barcode # 8718868020307
Brand Chuango
Shipping Weight 0.1700kg
Shipping Width 0.107m
Shipping Height 0.153m
Shipping Length 0.047m
