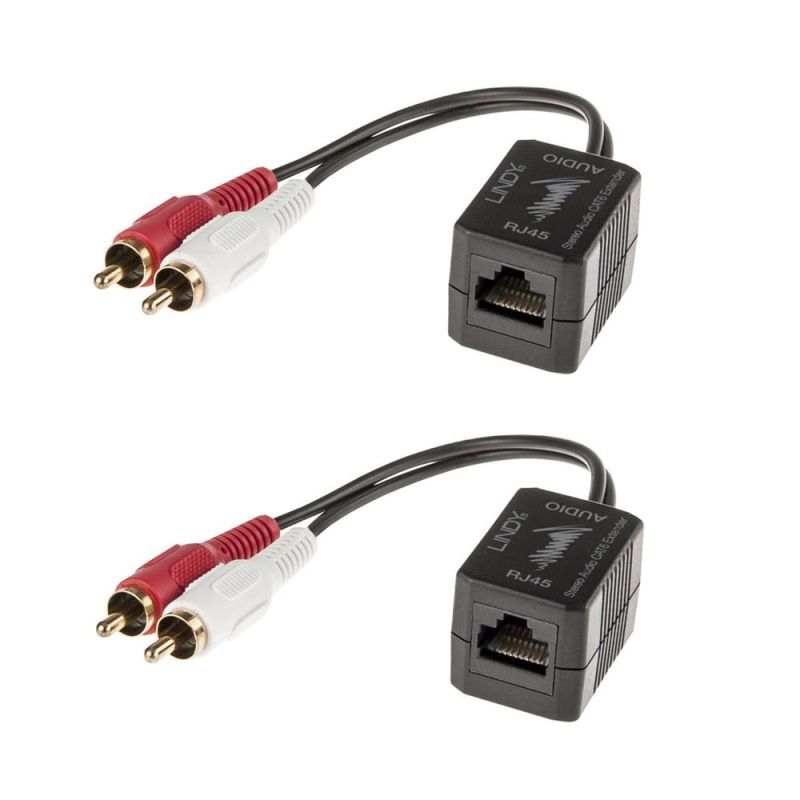

Lindy 500m CAT6 RCA Analogue Audio Extender

SKU: LIN70460

$28.43

RRP $31.95 SAVE $3.52
Share:

or 4 payments of $7.11 with Info



Product Details

  • Extend analogue audio up to 500m over standard network cable
  • Passive extension with no external power required
  • Pigtail style housing with no requirement for additional audio cables with no requirement for additional audio cables
  • Interoperable housings – use either unit as a Tx or Rx
  • 2 Year Warranty

The Lindy 500m CAT6 RCA Analogue Audio Extender is a compact solution for extending stereo audio signals to much longer distances over easily accessible network cable. With a compact pigtail style design and no requirement for additional power, the extender provides a minimalistic extension solution that can be discreetly installed alongside source devices and analogue speakers. The units provide seamless interoperability, allowing for use of either unit at any side of the setup.

Use our CAT5e/6 cable or UTP CAT5e Solid Core cable which are sold separately.

*Note: maximum transmission lengths are for guidance and will depend on your application and the type of twisted pair cable used. This product is designed for use with a single network cable between the transmitter and the receiver.



Technical Information

Specifications

  • AV Interface: -
  • Interface Standard: -
  • Supported Bandwidth: -
  • Maximum Distance: 500m (1640.4ft)
  • Maximum Resolution: -
  • HDCP Support: -
  • EDID Pass Through: -
  • Supported Audio: 2Ch Stereo Audio
  • Separate Audio Ports: -
  • IR Support: -
  • CEC Support: -
  • Serial Interface: -
  • Transmission Protocol: -
  • Transmission Medium: 1 x Cat.5e / 6
  • Laser Class (only for Fibre): -
  • Wavelength (only for Fibre): -
  • Chipset: -
  • Special Features: -

Connectors

  • Transmitter Input: Phono (Male)
  • Transmitter Output: RJ-45 (Female)
  • Receiver Input: RJ-45 (Female)
  • Receiver Output: Phono (Male)
  • Bi-directional Ports: -
  • Power: -

Physical Properties

  • Dimensions (approx.) WxDxH: 23x31x25mm (0.91x1.22x0.98in)
  • Housing Material: Plastic
  • Net Weight: 0.041kg (0.09lb)
  • Operating Temperature: 0°C - 55°C (32°F - 131°F)
  • Storage Temperature: -20°C - 85°C (-4°F - 185°F)
  • Humidity: 0 - 95% RH (non-condensing)
  • Power Requirements: -
  • Colour: Black

Miscellaneous

  • Packaging Type: Polybag
  • Packaging Dimensions: 174x194mm (6.85x7.64in)
  • Gross Weight: 0.05kg (0.11lb)
  • Warranty (Years): 2
  • Certificated: REACH & California Proposition 65



(LIN70460)

SKU LIN70460
Model # 70460
Barcode # 4002888704601
Brand Lindy
Shipping Weight 0.0500kg
Shipping Width 0.050m
Shipping Height 0.110m
Shipping Length 0.110m
Shipping Cubic 0.000610000m3
