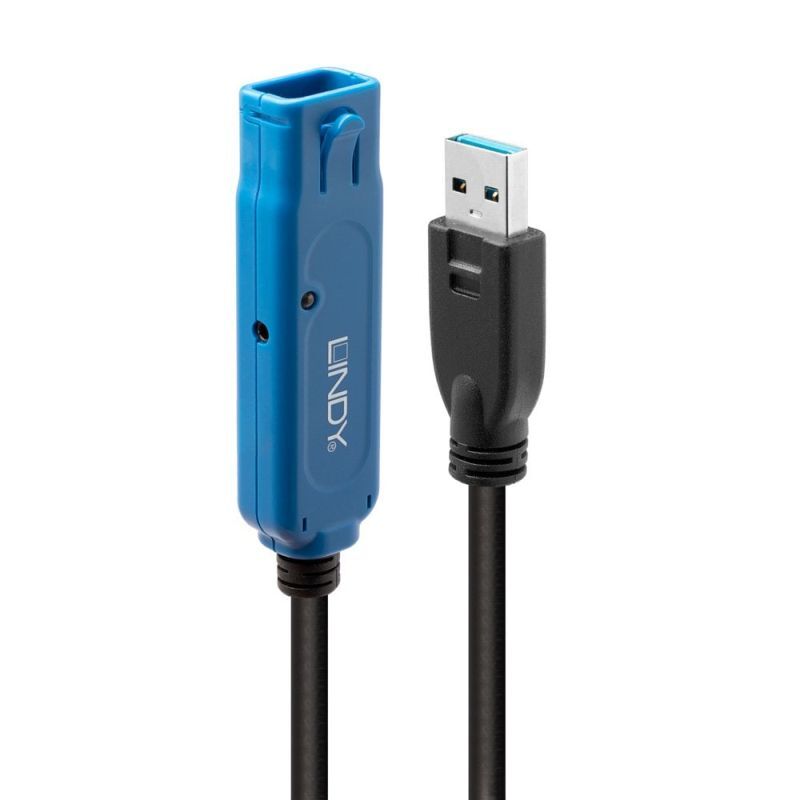

Lindy 10m USB 3.0 Active Extension Cable Pro

SKU: LIN43157

Product Details

High performance, active cable that provides an extended 10m connection between a computer and USB 3.0 device
Can be used standalone or as part of the Lindy Active Extension System Pro to create bespoke extension systems of over 40m (depending on the cable configurations used)
Supports the full USB 3.0 SuperSpeed bandwidth for speeds of 5Gbps
Easy to use – connects to the device’s existing USB cable (5m maximum)
2 year warranty

The Lindy USB Active Extension Cable Pro is a high performance active cable that allows access to USB 3.0 SuperSpeed peripherals over long distances. With support for data transfer speeds of up to 5Gbps this extension cable is perfect for transferring large data volumes quickly and reliably.

This 10m extension cable can be used standalone or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 3.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at up to 50m (depending on the cable configurations used).

The 8m and 10m cable, and the 10m hub, feature a single active repeater module to boost the USB signal. The 15m cable uses two repeaters. A fully deployed extension system is limited to a maximum of 50m and 5 repeater modules. Any combination of cables and a single hub can be connected providing the 50m / 5 repeater limit is not exceeded. The extension hub must always be the last segment of the extension system.

This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.

Package Contents

10m USB 3.0 Active Extension Cable Pro
USB A Male to 0.7/2.5mm Outer DC Cable
LINDY Manual

Technical Information

Connectors

Connector A: USB Type A Male
Connector B: USB Type A Female
Power: 2.5/0.7mm DC Connector
Housing Material: Plastic
Connector Plating: Nickel
Pin Construction: Brass
Pin Plating: Gold Flash
Dimensions (approx.) WxDxH:
- USB A Male: 15x49x8mm (0.59x1.93x0.31in)
- USB A Female: 20x80x13mm (0.79x3.15x0.51in)

Cable Construction

Length: 10m (32.81ft)
Standard: USB 3.1 Gen 1 / 3.0
Colour: Black
Type: Round
Jacket Diameter: 7mm +/- 0.15mm (0.28in +/- 0.01in)
Jacket Material: Half matt PVC low toxic
Conductor Material: Tinned Copper
Conductor Gauge: 24/24/20AWG
Shielding: AL Mylar and braid

Specifications

Supported Bandwidth: 5 Gbps
Nominal Attenuation:
0.064MHz - <0.08dB
0.256MHz - <0.11dB
0.512MHz - <0.13dB
0.772MHz - <0.15dB
1.0MHz - <0.20dB
4MHz - <0.39dB
8MHz - <0.57dB
12MHz - <0.67dB
24MHz - <0.95dB
48MHz - <1.35dB
96MHz - <1.90dB
200MHz - <3.20dB
400MHz - <5.80dB
Minimum Bend Radius: 36mm (1.42in)
Maximum Tensile Load: -
Operating Temperature: 0°C - 50°C (32°F - 122°F)
Storage Temperature: -20°C - 60°C (-4°F - 140°F)
Transmission Medium: Twisted Pair
Transmission Technology: USB 3.1 Gen 1 / 3.0

Miscellaneous

Packaging Type: Carton Box
Packaging Dimensions: 240x200x70mm (9.45x7.87x2.76in)
Net Weight: 0.75kg (1.65lb)
Gross Weight: 0.9kg (1.98lb)
Warranty (Years): 2
Certificated: CE, FCC, RoHS & REACH
