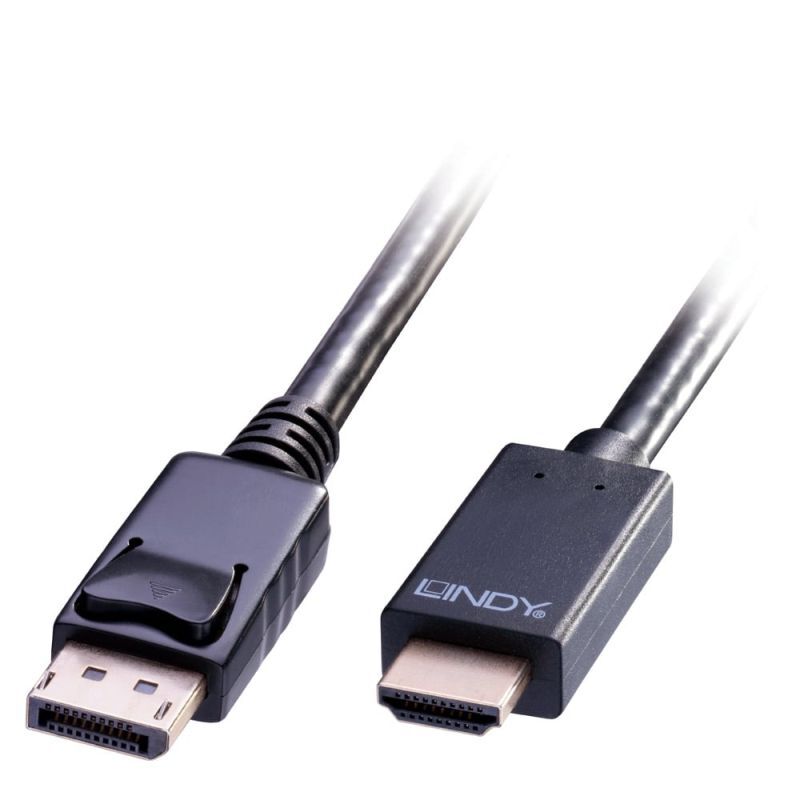

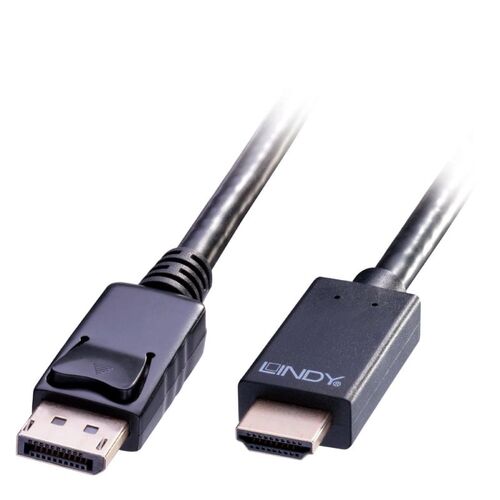

Lindy 2m DisplayPort to HDMI 10.2G Cable

The Lindy DisplayPort to HDMI Cable is ideal for connecting a DisplayPort equipped source such as a PC or laptop to an HDMI display. Supporting 4K UHD resolutions up to 3840x2160@30Hz, this cable is ideal for ensuring video is displayed in superior clarity. This cable can also be used to add another display to extend the available desktop workspace and increase productivity, great for use in residential or workplace office setups.

The DisplayPort to HDMI Cable supports uncompressed 7.1 Audio and compressed Audio such as DTS-HD Master Audio, Dolby TrueHD. Please note that audio output over HDMI is only supported when the graphics card of the laptop or desktop computer supports audio output over DisplayPort.



Technical Information

Connectors

• Connector A: DisplayPort Male
• Connector B: HDMI Type A male
• Housing Material:
• DisplayPort: ABS
• HDMI: PVC
• Connector Plating: Gold plated
• Pin Construction: Copper
• Pin Plating: Gold plated
• Dimensions (approx.) WxDxH:
  DisplayPort: 36.4x20.5x9.4mm (1.43x0.81x0.37in)
  HDMI: 37.5x20.5x10.5mm (1.48x0.81x0.41in)

Cable Construction

• Standard: HDMI 1.4, DisplayPort 1.2
• Colour: Black
• Type: Round
• Jacket Diameter: 7.3mm (0.29in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge: 28AWG
• Shielding: Aluminum Braid 85%

Specifications

• Supported Bandwidth: 10.2Gbps
• Maximum Resolution: 3840x2160@30Hz 4:4:4 8bit
• Nominal Attenuation:
  100MHz~450MHz  -2.44--5.099dB
  450MHz~8100MHz  -5.094~32.906dB
• Minimum Bend Radius: 73mm (2.87in)
• Operating Temperature: 0°C - 45°C (32°F - 113°F)
• Storage Temperature:  -10°C - 80°C (14°F - 176°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS, REACH, UL & California Proposition 65
