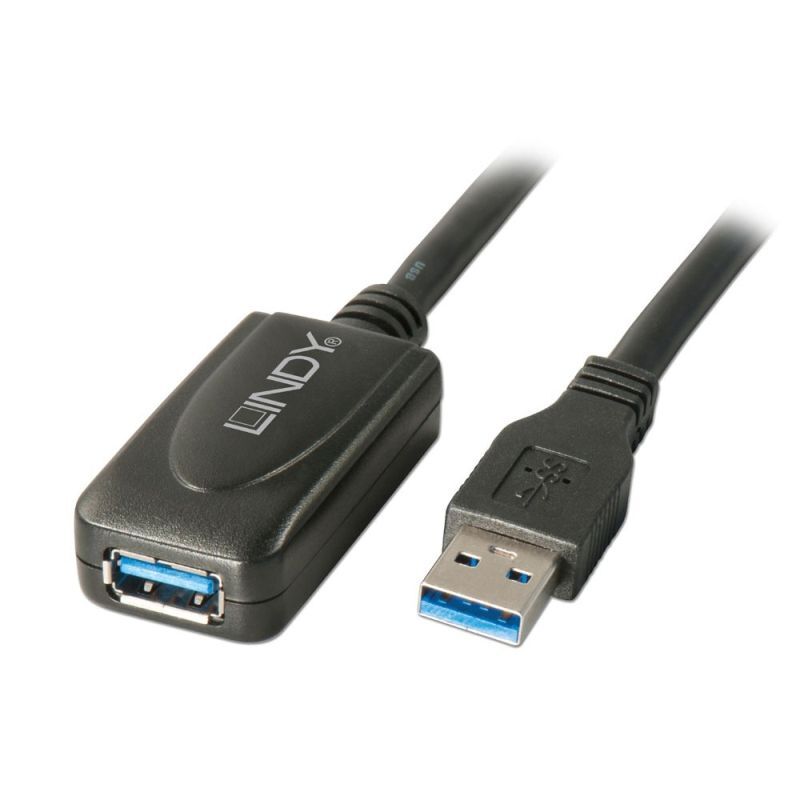

Lindy 5m USB 3.0 Active Extension Cable, USB Type A Male / Female

SKU: LIN43155

Product Details

5 metre USB 3.0 Active Extension Repeater Lead
Supports transfer rates up to 5Gbps
For even greater distances simply connect 2 cables in series
Plug & Play
2 year warranty

The Lindy USB 3.0 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.0 device by an additional 5m whilst continuing to support data transfer rates of up to 5Gbps.

With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning. Up to 2 extension cables can be chained together.

The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers.

It is certified by Google to provide a long distance active connection between the ASUS Chromebox and USB camera in a Google Hangouts Meet hardware installation, perfect for use in boardrooms and other video conferencing scenarios.

Package Contents

USB 3.0 Active Extension 5m

Technical Information

Connectors

Connector A: USB Type A Male
Connector B: USB Type A Female
Power: -
Housing Material: Plastic
Connector Plating: Gold 3µ
Pin Construction: Brass
Pin Plating: Gold 15µ
Dimensions (approx.) WxDxH:
- USB A Male: 16x48x6mm (0.63x1.89x0.24in)
- USB A Female: 24x46x12mm (0.94x1.81x0.47in)

Cable Construction

Length: 5m (16.4ft)
Standard: USB 3.1 Gen 1 / 3.0
Colour: Black
Type: Round
Jacket Diameter: 5.5mm (0.22in)
Jacket Material: Matt PVC
Conductor Material: Tinned Copper
Conductor Gauge: 28AWG+24AWG
Shielding: AL Mylar

Specifications

Supported Bandwidth: 5 Gbps
Nominal Attenuation:
1.5dB/2M@0.1GHz
5.0dB/2M@1.25GHz
7.5dB/2M@2.5GHz
25dB/2M@7.5GHz

Minimum Bend Radius: 55mm (2.17in)
Maximum Tensile Load: 1500PSI min
Operating Temperature: 0°C - 60°C (32°F - 140°F)
Storage Temperature: 0°C - 70°C (32°F - 158°F)
Transmission Medium: Twisted Pair
Transmission Technology: USB 3.1 Gen 1 / 3.0

Miscellaneous

Packaging Type: Blister
Packaging Dimensions: 237x138x60mm (9.33x5.43x2.36in)
Net Weight: 0.22kg (0.49lb)
Gross Weight: 0.289kg (0.52lb)
Warranty (Years): 2
Certificated: CE, FCC, RoHS & REACH

(LIN43155)

SKU	LIN43155
Model #	43155
Barcode #	4002888431552
Brand	Lindy
Shipping Weight	0.2340kg
Shipping Width	0.060m
Shipping Height	0.138m
Shipping Length	0.237m
Shipping Cubic	0.001960000m3
