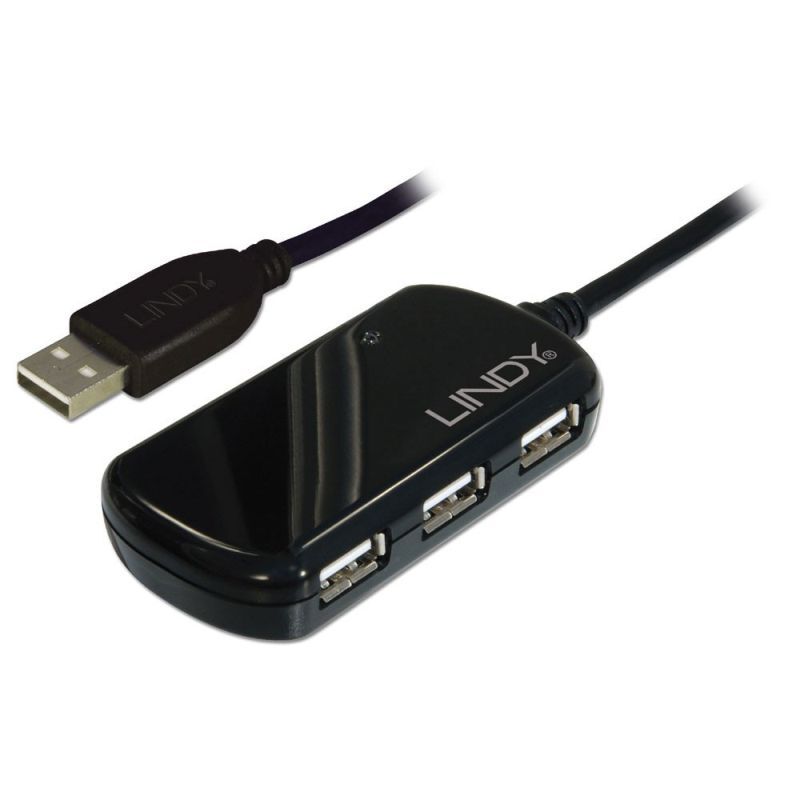

Lindy 8m USB 2.0 Active Extension Pro 4 Port Hub

SKU: LIN42781

Product Details

High performance hub with active cable that provides an extended 8m connection between a computer and up to 4 USB 2.0 devices
Can be used standalone or as part of the Lindy Active Extension System Pro to create bespoke extension systems of up to 60m
Supports USB 2.0 High Speed bandwidth for speeds of 480Mbps
Easy to use – connects to the device’s existing USB cable (5m maximum)
2 year warranty

The Lindy USB Active Extension Hub Pro is a high performance hub with active cable that allows access to four USB 2.0 peripherals over long distances. With support for data transfer speeds of up to 480Mbps this extension hub is perfect for transferring data volumes quickly and reliably.

This 8m extension hub can be used standalone or as part of the Lindy USB 2.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 2.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at up to 60m.

The 8m and 12m cable, and the 8m and 12m hub feature a single active repeater module to boost the USB signal. The 30m cable uses two repeaters. A fully deployed extension system is limited to a maximum of 60m and 4 repeater modules. Any combination of cables and a single hub can be connected providing the 60m / 4 repeater limit is not exceeded. The extension hub must always be the last segment of the extension system.

This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.

Package Contents

8m USB 2.0 Active Extension Pro 4 Port Hub
5V Multi Country PSU
LINDY Manual

Technical Information

Connectors

Connector A: USB Type A Male
Connector B: 4 x USB Type A Female
Power: 3.5/1.35mm DC Connector
Housing Material: Plastic
Connector Plating: Front: Gold / Back: Nickel
Pin Construction: Brass
Pin Plating: Gold Flash
Dimensions (approx.) WxDxH:
- USB A Male: 15x43x8mm (0.59x1.69x0.31in)
- Hub: 80x40x16mm (3.15x1.57x0.63in)

Cable Construction

Length: 8m (26.25ft)
Standard: USB 2.0
Colour: Black
Type: Round
Jacket Diameter: 5mm +/-0.15mm (0.2in +/- 0.01in)
Jacket Material: Half matt PVC low toxic
Conductor Material: Tinned Copper
Conductor Gauge: 26/20AWG
Shielding: AL Mylar and braid

Specifications

Supported Bandwidth: 480 Mbps
Nominal Attenuation:
(0.064 MHz, -0.08 dB)
(0.256MHz, -0.11 dB)
(0.512MHz, -0.13 dB)
(0.772 MHz, -0.15 dB)
(1 MHz, -0.2 dB)
(4 MHz, -0.39 dB)
(8 MHz, -0.57 dB)
(12 MHz, -0.76 dB)
(24 MHz, -0.95 dB)
(48 MHz, -1.35dB)
(96 MHz, -1.9 dB)
(200 MHz, -3.2 dB)
(400 MHz, -5.8 dB)
Minimum Bend Radius: 26mm (1.02in)
Maximum Tensile Load: -
Operating Temperature: 0°C - 50°C (32°F - 122°F)
Storage Temperature: -20°C - 60°C (-4°F - 140°F)
Transmission Medium: Twisted Pair
Transmission Technology: USB 2.0

Miscellaneous

Packaging Type: Carton Box
Packaging Dimensions: 238x202x66mm (9.37x7.95x2.6in)
Net Weight: 0.331kg (0.73lb)
Gross Weight: 0.654kg (1.44lb)
Warranty (Years): 2
Certificated: CE, FCC, RoHS & REACH
