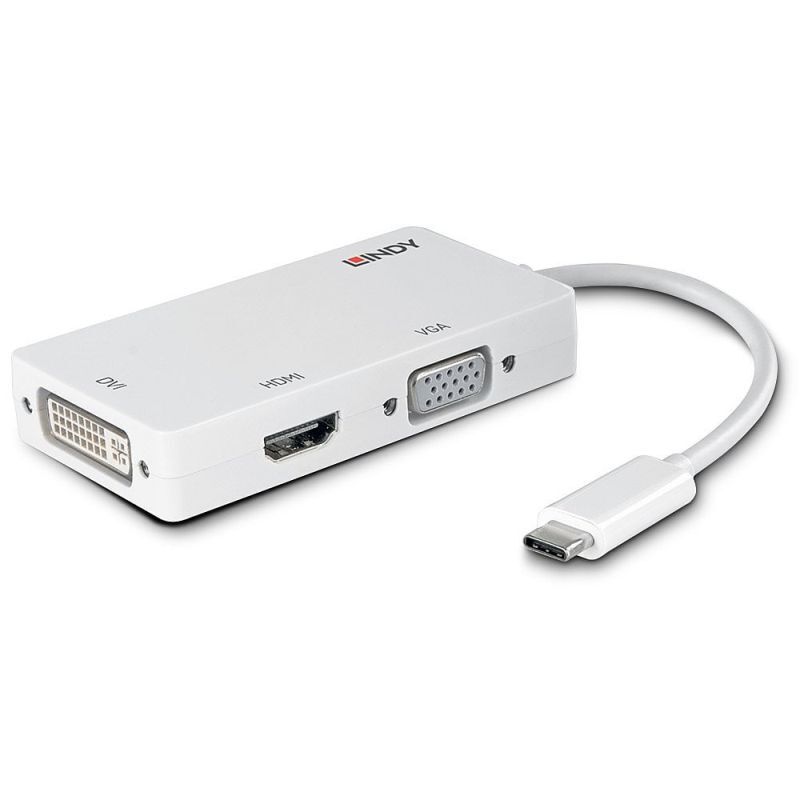

Lindy USB 3.1 Type C to Triple Display Converter

SKU: LIN43273

Product Details

Converts a USB 3.1 Type C port to an HDMI, DVI or VGA port
Requires DisplayPort Alternate Support by the USB 3.1 Port/Bus
Supports resolutions up to 4096x2160@30Hz RGB (HDMI) / 1920x1200@60Hz (DVI) / 1920x1080@60Hz (VGA)
Plug and Play, no drivers required
2 year warranty

The Lindy USB 3.1 Type C to Triple Display Converter allows users to connect either an HDMI, DVI or VGA screen to a Macbook, ultrabook or notebook with USB 3.1 DisplayPort Alternate Mode.

With its lightweight, low profile design, the adapter easily fits into a notebook bag and simply expands any available connectivity options, so users can connect to the most commonly used digital and analogue video equipment, without having to carry multiple adapters - ideal for BYOD applications.

The converter is powered by the USB Bus, therefore no external power supply is needed. Installation is simple as no drivers are required and Type-C's reversible design has been developed to work regardless of which way the cable is inserted into the port.

Package Contents

USB 3.1 Type C to Triple Display Converter
Lindy Manual

Technical Information

Specifications

AV Interface: USB Type C to HDMI & DVI & VGA
Interface Standard: HDMI 1.4, DVI, VGA
Supported Bandwidth: 10.2Gbps
Maximum Input Resolution:
HDMI: 4096x2160@30Hz RGB
VGA: 1920x1080@60Hz
DVI: 1920x1200@60Hz
Maximum Output Resolution:
HDMI: 4096x2160@30Hz RGB
VGA: 1920x1080@60Hz
DVI: 1920x1200@60Hz
Chipset: VL100
Compatibility: USB Type C or Thunderbolt 3 equipped computers with DisplayPort Alternate Mode support
Power Delivery: -
HDCP Support: -
Supported Audio: -
Separate Audio Ports: -
Special Features: DisplayPort Alternate Mode

Connectors

Inputs: 1 x USB Type C (Male)
Outputs: 1 x HDMI (Female), 1 x DVI (Female), 1 x VGA (Female)
Power: Bus-powered

Physical Properties

Dimensions (approx.) WxDxH: 85x45x15mm (3.35x1.77x0.59in)
(Fixed) Cable Length: 130mm (5.12in)
Housing Material: Plastic
Net Weight: 0.049kg (0.11lb)
Operating Temperature: 0°C - 45°C (32°F - 113°F)
Storage Temperature: -10°C - 70°C (14°F - 158°F)
Humidity: 10 - 85% RH ( non-condensing)
Power Requirements: -
Colour: White

Miscellaneous

Packaging Type: Polybag
Packaging Dimensions: 160x160x20mm (6.3x6.3x0.79in)
Gross Weight: 0.07kg (0.15lb)
Warranty (Years): 2
Certificated: CE, FCC, RoHS & REACH

(LIN43273)

SKU	LIN43273
Model #	43273
Barcode #	4002888432733
Brand	Lindy
Shipping Weight	0.0660kg
Shipping Width	0.020m
Shipping Height	0.160m
Shipping Length	0.160m
Shipping Cubic	0.000510000m3
