FEATURE SUMMARY

  • ATX 3.0 and PCIe 5.0 Cable (12VHPWR)
  • 80 PLUS Gold certified
  • Compact Size - 140 mm deep

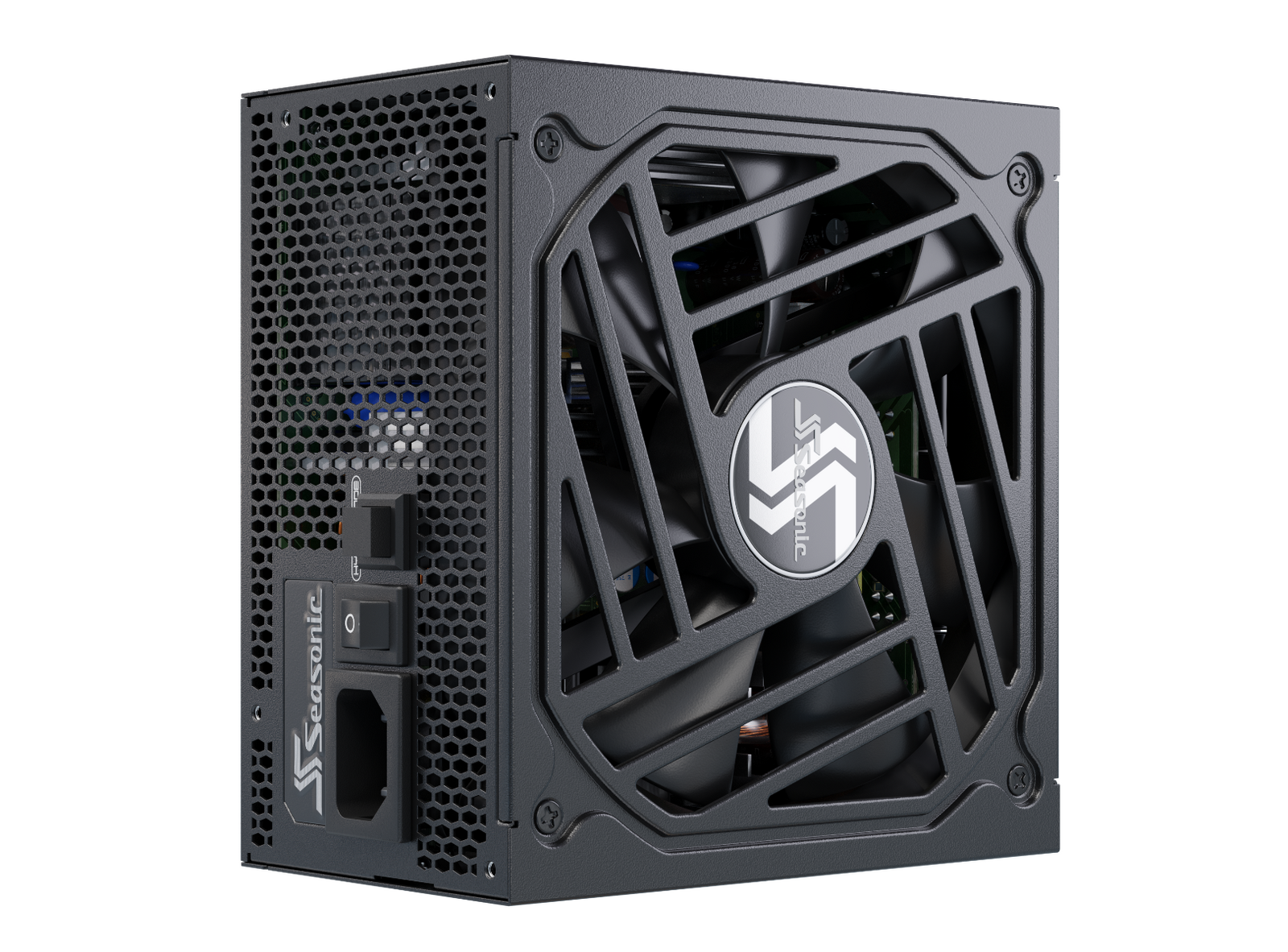

  • Top-Quality 135 mm FDB Fan
  • Digital Hybrid Fan Control
  • S3FC - Fanless until 30% load

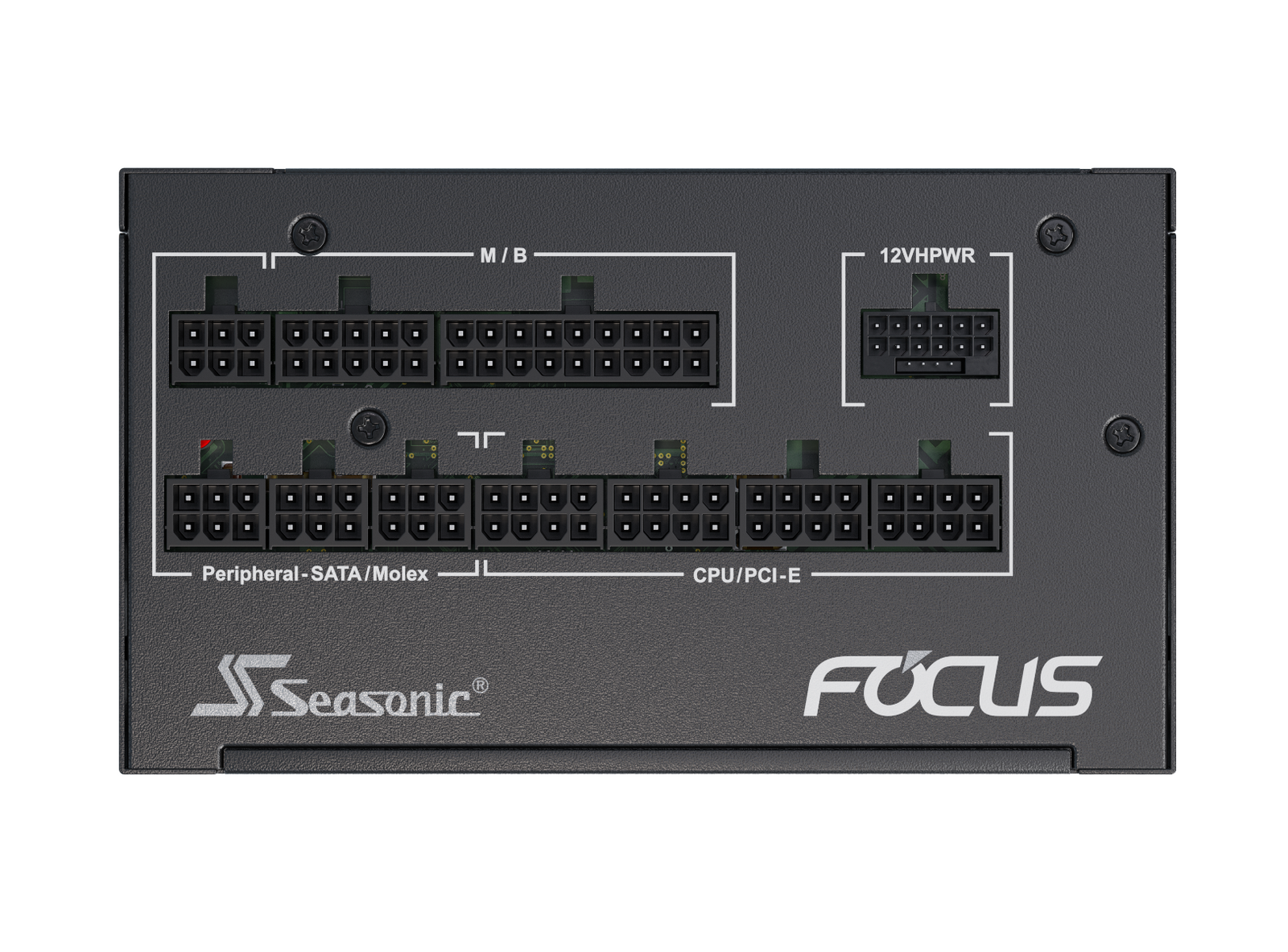

  • Cable-free Connection Design
  • Tight Voltage Regulation
  • Gold plated connectors
  • 10 years warranty



    •
Technical Specifications
80PLUS Gold
Cybenetics Efficiency Level TBA
Cybenetics Noise Level TBA
Form Factor Intel ATX 12V
Dimensions 140 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information Fan Size 135 mm
Fan Control S3FC - Fanless until 30% load
Fan Bearing Fluid Dynamic Bearing
Life Expectancy 50,000 hours at 40C, 15% - 65% RH
Cable Information Modularity Fully Modular
Cable type Individual Black Cables with Braided Pattern
Electrical Features Operating Temperature 0 - 50C
MTBF @ 25 C, excl. fan 100,000 hours
AC Input Full Range
Protection OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty 10 Years



Power Output
AC Input
Voltage: 100 V - 240 V
Current: 10 - 5 A
Frequency: 50 Hz - 60 Hz
DC Output
Rail
+3.3 V
+5 V
+12 V
-12 V
+5 VSB
Maximum Power
20 A
20 A
62 A
0.3 A
3 A
100 W
744 W
3.6 W
15 W
Total Continuous Power
750 W



12-month Australian Consumer Law Guarantee

SKU V28-PSUSEAFOCUSGX750A3
Barcode # 882016002502
Brand Seasonic
Shipping Weight 5.0000kg
Shipping Width 0.190m
Shipping Height 0.120m
Shipping Length 0.310m
Shipping Cubic 0.007000000m3
